3-Axle Gooseneck Container Skeletal Semi Trailer
We pride ourselves on our ability to provide custom solutions that precisely meet your unique needs. Whether you're a small startup or a large enterprise, we have the expertise and flexibility to create solutions that are as individual as your business.
After-sale time differs for each spare part. Contact us for details.
The 3-axle gooseneck container skeletal semi-trailer is a vital piece of transport equipment widely used in modern logistics and transportation.
1. Structural Features
Gooseneck Design
The 3-axle gooseneck container skeletal semi-trailer features a unique structural design. This effectively lowers the vehicle's center of gravity, improving stability during transportation. During transportation, especially at high speeds or when negotiating curves, the lower center of gravity reduces the risk of rollover and ensures safe transportation of cargo.

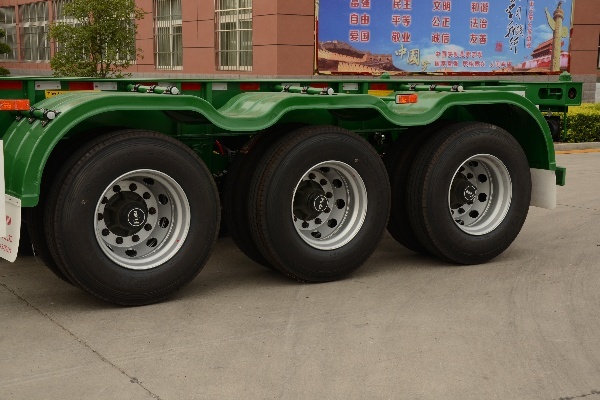

Tri-Axle Layout
The tri-axle structure effectively distributes the vehicle's weight. Each axle bears a reasonable load, resulting in a more even distribution of pressure on the road surface and minimizing damage. Furthermore, the tri-axle design enhances the vehicle's load-bearing capacity, making it suitable for transporting heavier containerized cargo.
2. Functional Advantages
Efficient Transportation
The 3-axle gooseneck container skeletal semi-trailer is specifically designed for container transportation and is perfectly compatible with various standard containers. It allows for convenient and efficient loading and unloading of containers, significantly reducing cargo turnover time. In ports, logistics centers, and other locations, this semi-trailer can efficiently work with cranes and other loading and unloading equipment, improving the operational efficiency of the entire logistics chain.
High Versatility
It is compatible with a variety of container types, ensuring stable transport of both 20-foot and 40-foot standard containers. This makes it widely applicable in both international trade and domestic logistics, meeting the container transportation needs of diverse customers.
3. Durability and Safety
Durable Materials
The frame is constructed of high-strength steel, offering excellent fatigue and corrosion resistance. This ensures the semi-trailer maintains its structural integrity over long-term use, reducing maintenance costs and extending its service life.
Safety
The 3-axles Gooseneck container skeletal semi-trailer is equipped with an advanced braking system and lighting signaling system. The braking system provides reliable braking performance, ensuring vehicle safety during driving. The lighting signaling system clearly communicates the vehicle's driving intentions to other road users, preventing accidents.
Details
Parameters
Your benefits
01
The entire structure of the Tianjun semi-trailer is designed using advanced PRO/ENGINEER three-dimensional modeling, finite element analysis, and frame mechanics analysis. This ensures structural rationality while optimizing the compatibility of all components. As a result, the vehicle achieves uniform load distribution, reduces spring and tire wear, and enhances overall safety.
02
Raw materials for the Tianjun series semi-trailer are sourced from reputable brands, utilizing high-quality steel. Our objective is to ensure superior quality and capacity while minimizing curb weight to maximize profitability for our customers. We have established a robust sourcing system to guarantee this high standard.
03
The lightweight high-strength steel semi-trailer features innovative side beams that not only widen the bottom section but also incorporate an edge fold of 20mm. This design significantly enhances vehicle strength and effectively increases its load-bearing capacity while ensuring resistance to distortion.
04
The beam employs an H-style steel flange straightening machine that effectively mitigates issues related to flame correction and welding stress in H-beams. This manufacturing process guarantees beam integrity and prevents bending deflection in the flange plate.
05
The main beam and through beam form a space frame structure. The main beam utilizes high-quality tensile steel combined with automatic submerged arc welding techniques; it undergoes shot peening treatment as well. These processes collectively balance strength, stiffness, toughness, enhance loading capacity, and provide permanent deformation resistance.
06
Our stamping rigid suspension consists of tandem leaf springs paired with hanging supports. This thoughtful design ensures strong rigidity and load-bearing capability while reducing impact forces. Balanced axle loads along with optimized lever angles minimize frictional sliding distances effectively lowering tire wear.
07
Under the premise of ensuring intensity, we have reduced partial weight, incorporated new accessories, and optimized loading capacity while minimizing curb weight.
08
The double circuit brake system, featuring renowned brand relay valves and high-quality ABS, enhances the safety of vehicle operation and extends tire lifespan.
09

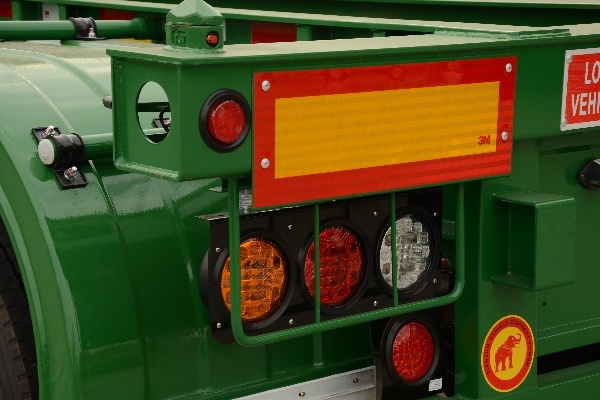

The latest LED energy-saving lamps offer superior brightness, excellent visibility in foggy conditions, stable performance, and an extended service life.
